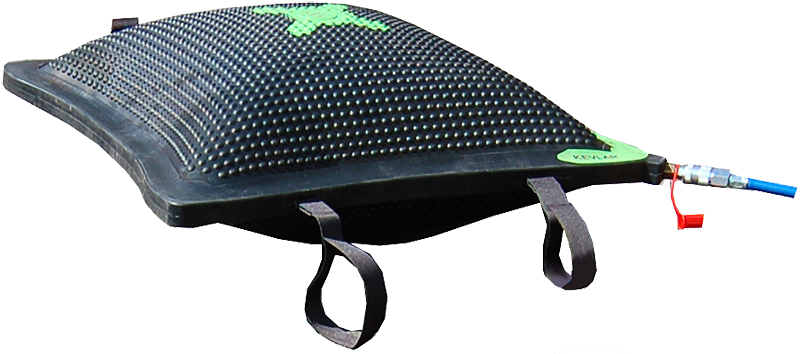

ECO-Jack® AIR Lifting bags and accessories

If it is not possible to work with an ECO-Jack hydraulic toe jack, the load can be lifted with an ECO-Jack® AIR lifting bag. With a closed height from 30 mm and payloads between 1 and 66 tonnes, they are suitable for low ground clearance and load handling points that cannot be reached with an ECO-Jack® hydraulic jack. All models have reinforced edges, center markers, non-slip surfaces, eye-catching safety warnings and low dead weight.

Other sizes, versions, and additional equipment such as hoses and control units ect. on request.

HTS made in Germany logo

Lifting bags of the series ECO-Jack® AIR are characterized by

  • the low installation height, which allows the ECO-Jack AIR lifting bags also fit under the narrowest areas with heights from 30 mm to 32 mm.
  • the equipment with 2 layers Kevlar with neoprene.
  • toothed surfaces on each side of the lifting bag to prevent cargo from slipping.
  • reinforced edges to protect against damage.
  • multi-color hoses that facilitate the assignment of each cushion in use (see accessories).
  • low self-weight for easy placement of the lifting bags.
  • marked center point for easy positioning.
  • safety warnings in bright colors for a long life.

For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.

Default product image

AIR 1

Article Number 190.100.010
Load (kg) 800
Load capacity at 120mm (kg) -
Working pressure (bar) 8
Lifting height (mm) 80
Dimensions L x B x H (mm) 150 x 150 x 25
Weight (kg) 0.6
Default product image

AIR 3

Article Number 190.100.030
Load (kg) 2700
Load capacity at 120mm (kg) -
Working pressure (bar) 8
Lifting height (mm) 130
Dimensions L x B x H (mm) 225 x 225 x 25
Weight (kg) 1.3
Default product image

AIR 6

Article Number 190.100.060
Load (kg) 5500
Load capacity at 120mm (kg) -
Working pressure (bar) 8
Lifting height (mm) 160
Dimensions L x B x H (mm) 300 x 300 x 25
Weight (kg) 2.4
Default product image

AIR 10

Article Number 190.100.100
Load (kg) 10100
Load capacity at 120mm (kg) 1760
Working pressure (bar) 8
Lifting height (mm) 210
Dimensions L x B x H (mm) 380 x 380 x 25
Weight (kg) 3.5
Default product image

AIR 13

Article Number 190.100.130
Load (kg) 13500
Load capacity at 120mm (kg) 3290
Working pressure (bar) 8
Lifting height (mm) 250
Dimensions L x B x H (mm) 450 x 450 x 25
Weight (kg) 5
Default product image

AIR 20

Article Number 190.100.200
Load (kg) 21100
Load capacity at 120mm (kg) 8200
Working pressure (bar) 8
Lifting height (mm) 300
Dimensions L x B x H (mm) 550 x 550 x 25
Weight (kg) 7
Default product image

AIR 25

Article Number 190.100.250
Load (kg) 25200
Load capacity at 120mm (kg) 11400
Working pressure (bar) 8
Lifting height (mm) 340
Dimensions L x B x H (mm) 610 x 610 x 25
Weight (kg) 9
Default product image

AIR 32

Article Number 190.100.320
Load (kg) 33000
Load capacity at 120mm (kg) 16000
Working pressure (bar) 8
Lifting height (mm) 380
Dimensions L x B x H (mm) 690 x 690 x 25
Weight (kg) 11
Default product image

AIR 42

Article Number 190.100.420
Load (kg) 44600
Load capacity at 120mm (kg) 22200
Working pressure (bar) 8
Lifting height (mm) 420
Dimensions L x B x H (mm) 780 x 780 x 25
Weight (kg) 14
Default product image

AIR 55

Article Number 190.100.550
Load (kg) 55000
Load capacity at 120mm (kg) 31600
Working pressure (bar) 8
Lifting height (mm) 470
Dimensions L x B x H (mm) 870 x 870 x 25
Weight (kg) 18
Default product image

AIR 69

Article Number 190.100.690
Load (kg) 70400
Load capacity at 120mm (kg) 46000
Working pressure (bar) 8
Lifting height (mm) 520
Dimensions L x B x H (mm) 945 x 945 x 26
Weight (kg) 22.5
